Output, consumption
- Voltage: 220–240 V
- Total connected load: 225.4 W
- Average power consumption: 44 kWh / year*
- Noise min./max. normal level: 48 / 58 dB*
Fan output max. normal level / intensive level*:
- in extraction mode 560 m3 / h /632 m3 / h
- in circulation mode 394 m3/h / 445 m3/h
* According to EU Regulation No. 65/2014 / Fan capacity according to EN 61591
Design, comfort
- Stainless steel
- For wall installation above cooking zones
- Multi Control
- Optional extraction or circulation mode (for circulation mode a carbon filter is required)
- Electronic control
- 4-level fan output (3 power levels + 1 intensive level) controllable via Multi Control
- Intensive levels with automatic reset
- Powerful and quiet blower
- Uniform, bright lighting with 2 x 2.7 W LED modules
- Optional extendible Multi Control function: LED light with adjustable brightness and colour temperature
- Heat sensor for automatic mode
- Colour temperature 4,000 K preset
- Metallic grease filter, dishwasher-safe
- Incl. exhaust air shaft

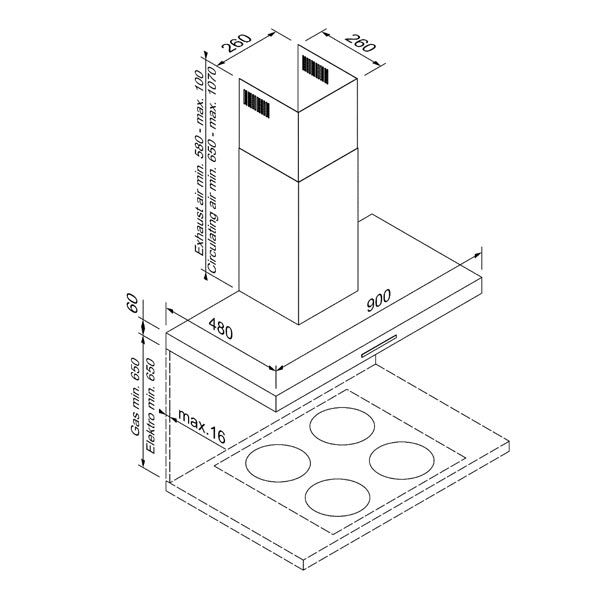

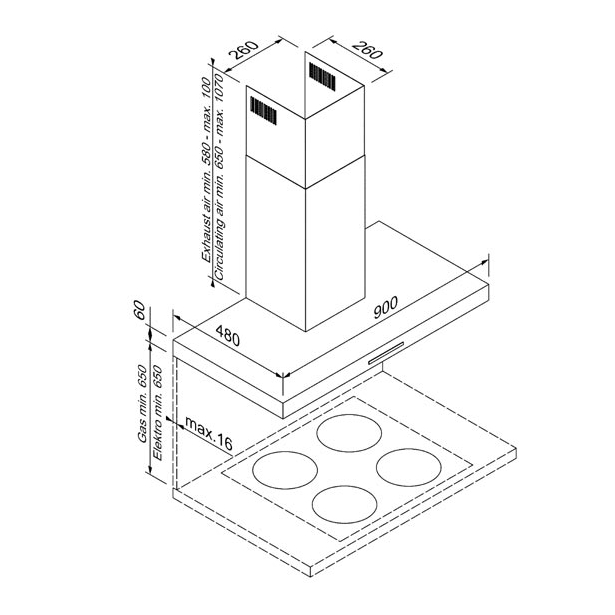

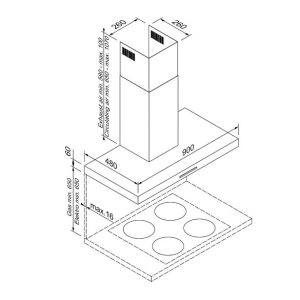

Dimension H x W x D
- Appliance dimensions, extraction: 64.0 – 106.0 x 90.0 x 48.0 cm
- Appliance dimensions, circulation: 71.0 – 113.0 x 90.0 x 48.0 cm
